The T-Star 245 Tipify Platform meets many Internet of Things Application requirements. It is an ANSI C12 certified tariff meter for both pulse inputs and with a Modbus RTU connected Veris CT package and its ability to connect to Building Automation Systems make this a good fit for Metering, Monitoring, Automated Demand Response and Analytics.

The T-Star 245 connects to equipment over a variety of protocols, including BACnet/IP, Modbus TCP and RTU, Haystack, and oBix.  The built-in 4G modem provides reliable and easy remote connectivity for data acquisition and diagnostics.


Connectors

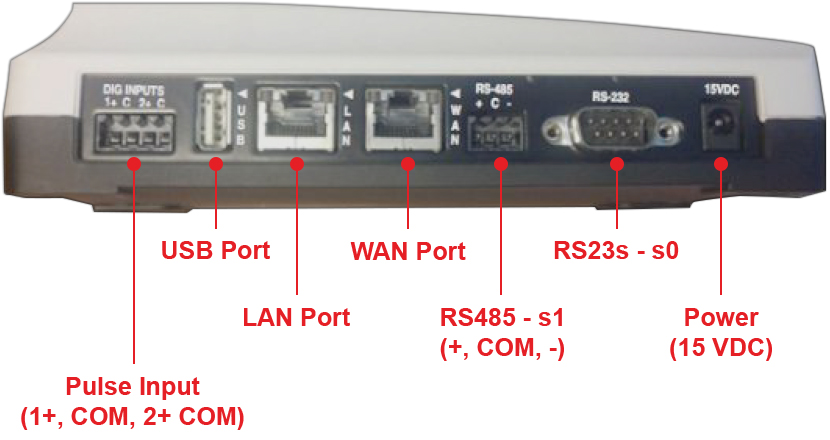

The 245 provides the connectors shown below.



Voltage Limits
Pulse Inputs: 0 to +5V
USB: 0 to +5V
RS485: -7V to +12V
RS232: -25V to +25V
Warning: NO HOT CONNECTIONS ARE ALLOWED ON THE T-STAR. VOLTAGES OUTSIDE OF THE ALLOWABLE RANGES, INCLUDING GROUND VOLTAGE DIFFERENCES, MAY DAMAGE THE DEVICE, AND WILL VOID THE WARRANTY.

LEDs

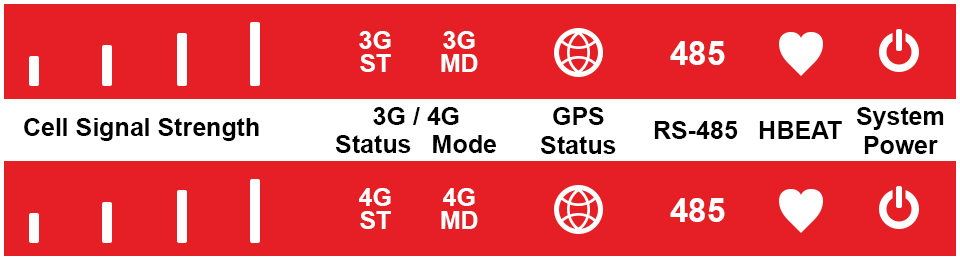

The LEDs provide indication of some of the hardware features.

NOTE: Your label may show 3G or 4G depending on when it was manufactured. Behavior is the same.


  1. Cell Signal Strength from left to right

Number of Bars

RSSI Range

0

-110 dBm or below

1

-109 dBm to -95 dBm

2

-93 dBm to -85 dBm

3

-83 dBm to -75 dBm

4

-73 dBm or greater
NOTE: Intellastar has a recommendation of installing a T-Star and antenna in a manner so that the T-Star achieves an RSSI of -83 or greater.
  1. 3G/4G Status - status light driven by modem.

3G/4G Status LED

Modem Status

Off

Modem is off

Solid On

Modem is provisioning

Blinking

Modem is operating normally
  1. 3G/4G Mode

3G/4G Mode LED

Status

On

Active PPP connection

Off

No activity or Data transfer
NOTE: When a new SIM has been installed, the modem will take up to 15 mins to finalize the network authentication, registration, and receive network assignment. This process should not be interrupted.
  1. GPS Status - related to GPS operation

LED Status

Device Status

Permanently Off

Device Off

Permanently On

Not Registered

Blinking 1sec on + 2sec off

Registered in Idle

In sync with network paging or event

Registered in Idle + Power Saving

Permanently On

Call active

Blinking 1sec on + 2sec off

Dial-up

  1. RS-485 - lights up on transmit or receive data transmissions on RS-485 port
  1. HBEAT - defined as follows

Heartbeat LED Pattern

Device Status

Solid LED

System booting

Single Blinking

No cellular connection established

Double Blinking

Cellular connection established and active

50% on time

Normal operation, JVM running

10% on time

JVM not running

Off

Device is ready to have power removed (Safe Shutdown command executed)


Warning: Do NOT remove power from the device until the SYSTEM POWER and HBEAT LEDs turn off.
  1. SYSTEM POWER - lights up when receiving power through adapter and battery is operating within correct voltage tolerances.

Shutdown

The SYSTEM POWER and HBEAT LED will turn off once shutdown has completed and the system is "down". It is used in several ways:

  1. As a steady state indication telling you that a manual shutdown procedure with AC present, has completed.
  2. As a final status indication telling you that an automatic shutdown procedure has completed. If you don't get this LED indication right before power cuts off, then the shutdown was not able to complete. Such might happen if the battery is too low to maintain power through shutdown procedure.
  3. As the last thing that happens before the unit self-reboots, such as if it just completed a disk clean operation and needs to restart itself.

When the SYSTEM POWER and  HBEAT LEDs are off, it is safe to pull power and/or pull battery because all data has been written to storage.
